MA200-M Multi Stealth Grey
200mm Wide range drive unit
8ohm single ferrite magnet
- Biggest size Markaudio driver
- Completely new design, multi-use applications
- Aerospace-grade aluminum magnesium mix alloy cone
- Operating range to 20KHz
- Balance low-frequency and high frequency
- Advanced low-distortion motor design
- Long-stroke, low resonance frequency

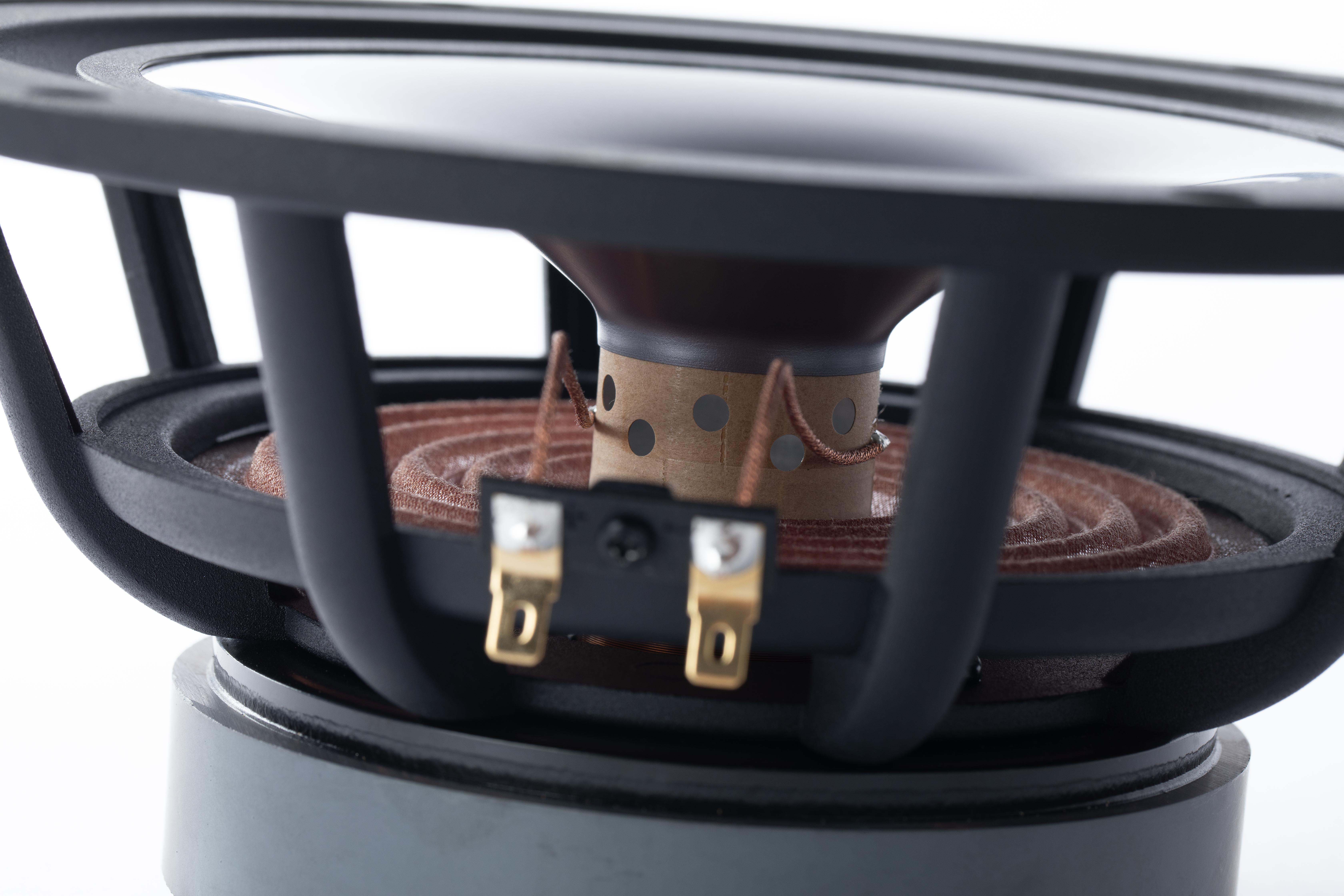

- Aluminum chassis optimizes sound wave emittance and airflow
Description

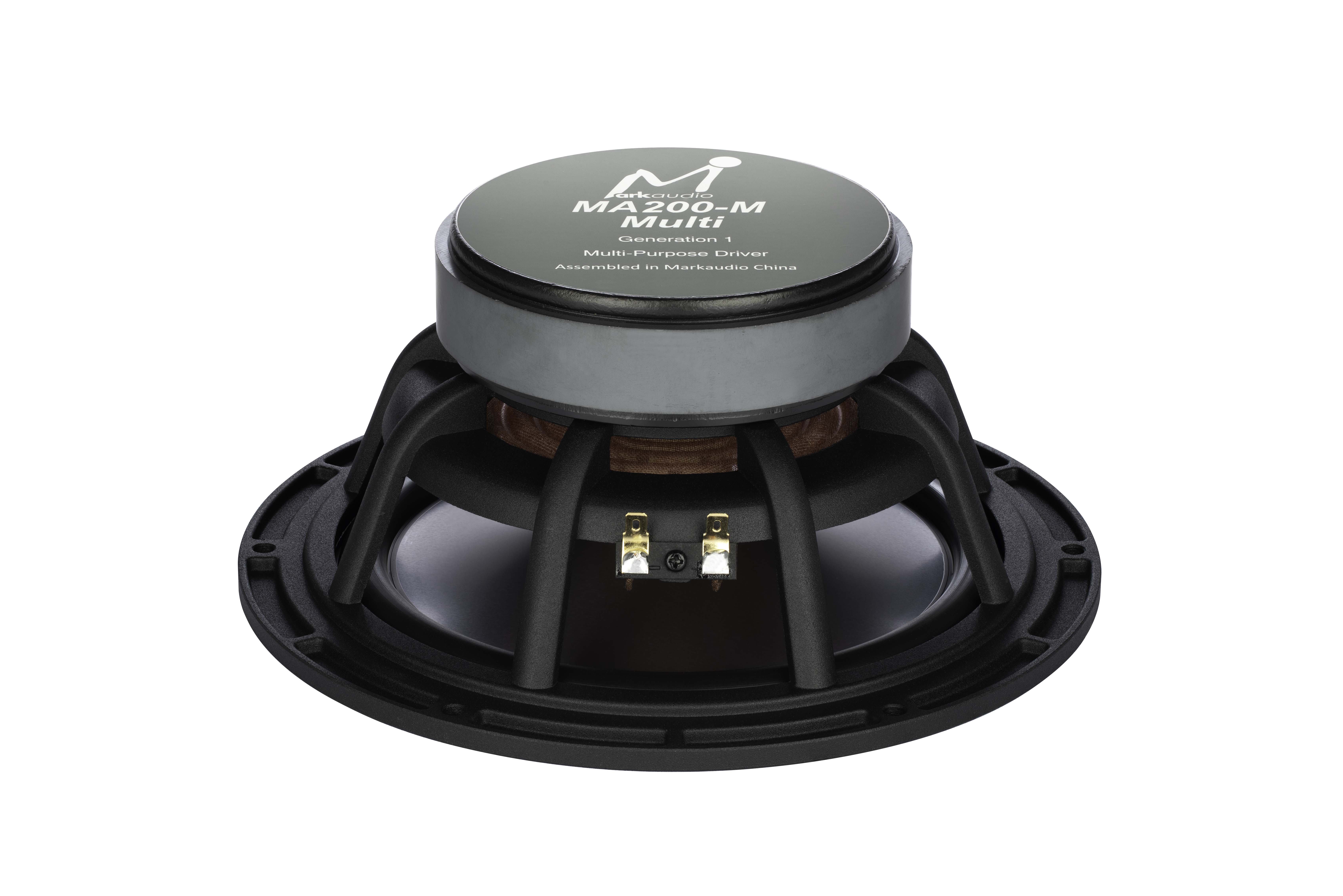

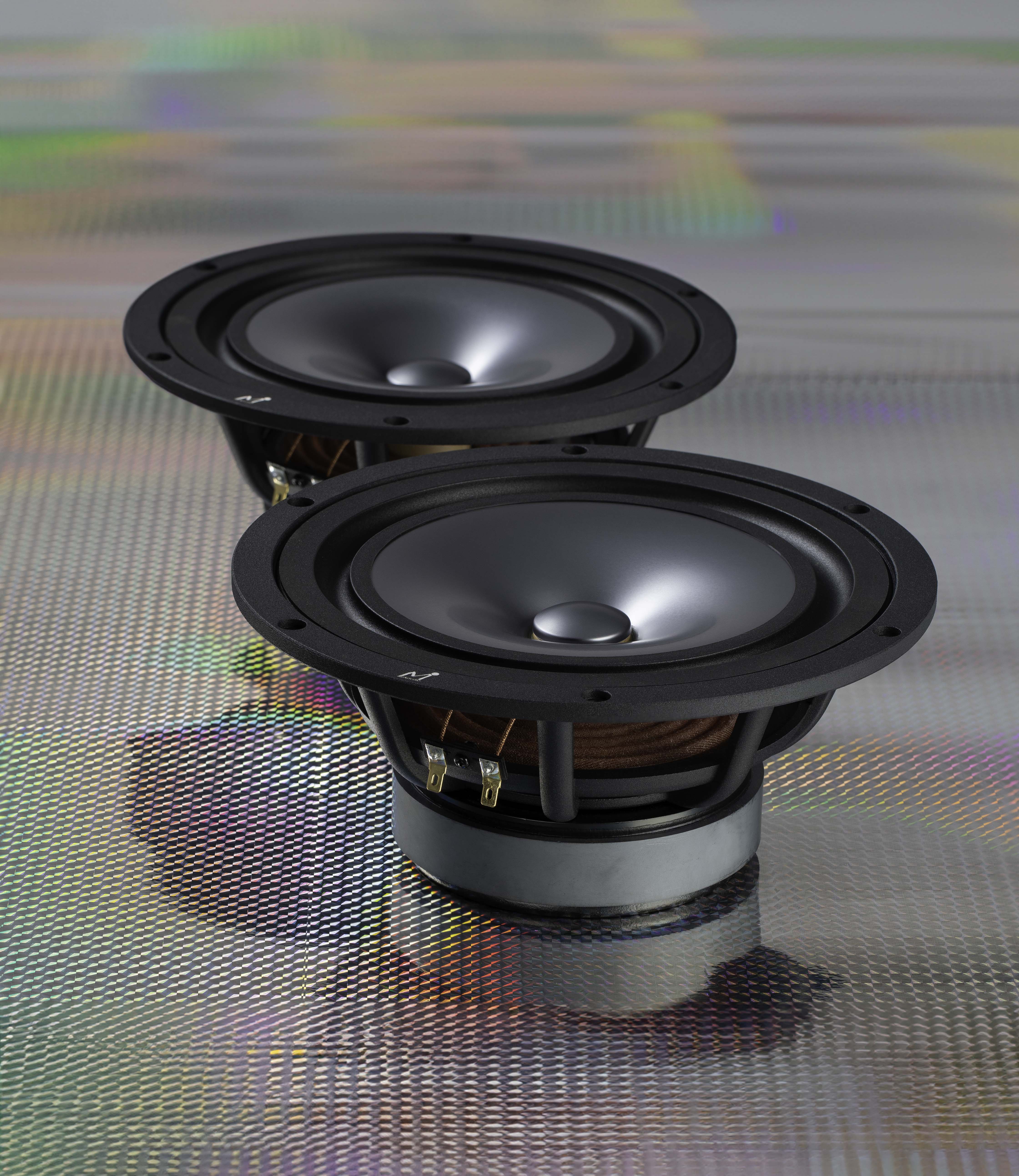

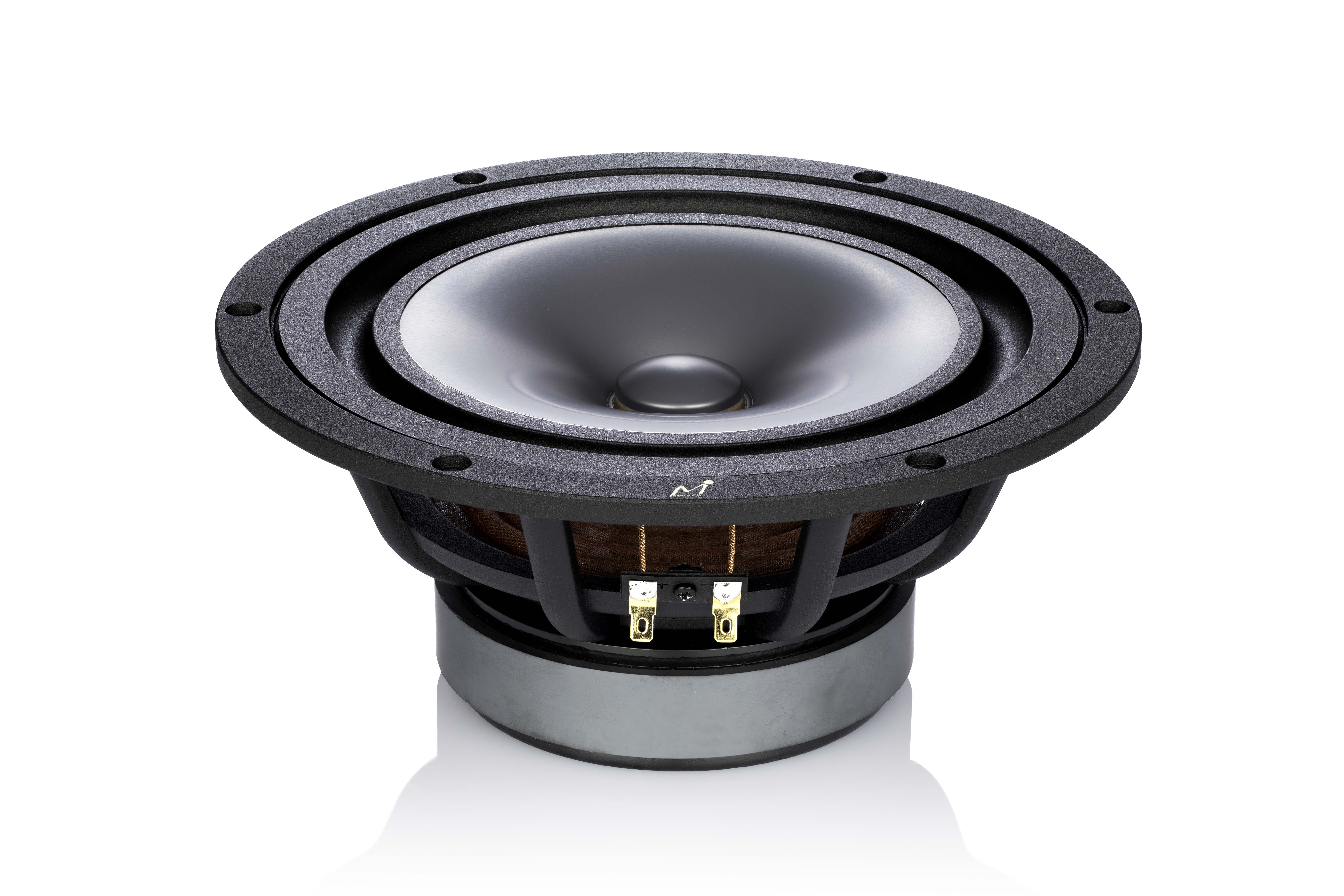

The MA200-M Multi is a new design 8-inch high-fidelity driver for multi-use applications and high-volume speaker projects.
The driver retains Markaudio’s unique design concept, style, and functionality, producing real bass combined with full-range frequency output. The MA200-M Multi is a testament to Markaudio’s commitment to versatility.

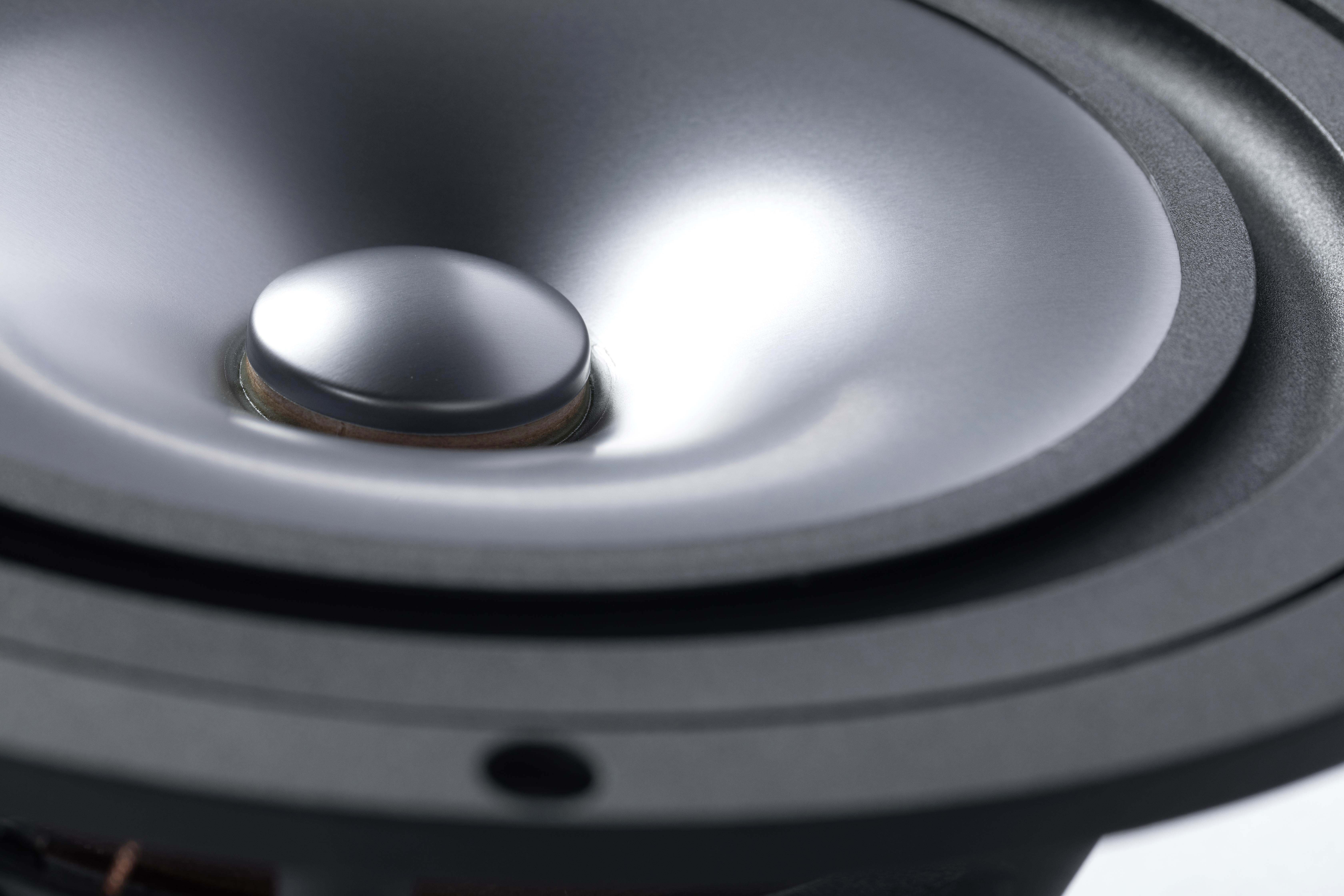

The cone is made from a high-strength, aerospace-grade aluminum magnesium mixed alloy, designed to cope with high bending stress loads. The material thickness is carefully balanced to maximize low-frequency load capacity while retaining excellent performance at higher frequencies; Combined with the long-stroke suspension and low-distortion motor, provides a low resonant frequency, medium Q, and an air volume compliance to around 65 liters. The driver is optimized for larger enclosures delivering a smooth extended range from 30Hz to above 20KHz in suitable box designs. The chassis is designed with rounded angles to improve sound wave emittance and optimized airflow.
The MA200-M Multi driver represents high performance with affordability. It provides custom builders with broad operational flexibility in traditional full-range or wide-range mid-bass, the MA200-M Multi is ideal for use in high-fidelity, home-theatre, and commercial A/V applications. It’s ideal for a wide choice of enclosure types.
Markaudio provides users with high-quality listening experiences by continuing to develop advanced mechanically engineered audio drivers at affordable prices.
RE | 6.8 Ohms |
---|---|
FS | 33.0003 Hx |
SD | 0.0206 m2 |
VAS | 65.1957 L |
CMS | 1.0990 mm/N |
MMD | 19.4093 g |
MMS | 21.1652 g |
BL | 8.5460 T/M |
QMS | 2.239 |
QES | 0.4086 |
QTS | 0.3455 |
RMS | 1.96 WM |
SPL | 90.26 dB |
POWER (NOMINAL) | 50 Watts |
X MAX | 9 mm (one way) |
COLOUR | Midnight Copper |
Additional information
Weight | 2.6 kg |
---|---|
Dimensions | 45 × 45 × 25 cm |
RE | 5.4 Ohms |
FS | 38.4 |
SD | 147.41 |
VAS | 45.3 |
CMS | 1.468m M/N |
MMD | 10.658 g |
MMS | 11.687 g |
BL | 5.308 T/M |
QMS | 1.44 |
QES | 0.541 |
QTS | 0.393 |
LE | 49.3 uH |
SPL | 88.6 dB |
POWER (NOMINAL) | 40 Watts |
X MAX | 8.5 mm (one way) |
colour | Paper |
