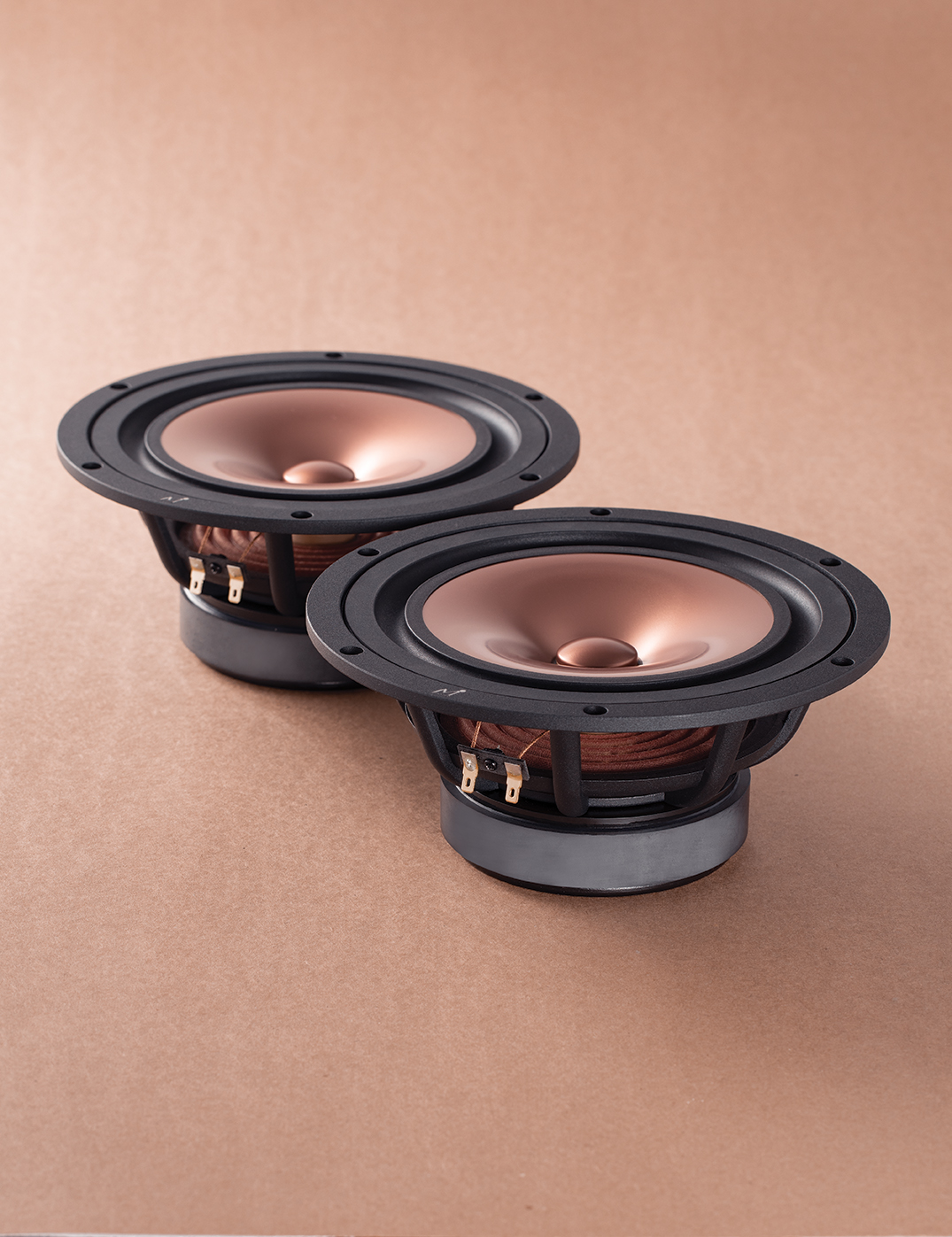

MA200-M Multi Midnight Copper

200mm Wide range drive unit
8ohm    single ferrite magnet

  • Biggest size Markaudio driver
  • Completely new design, multi-use applications
  • Aerospace-grade aluminum magnesium mix alloy cone
  • Operating range to 20KHz
  • Balance low-frequency and high frequency
  • Advanced low-distortion motor design
  • Long-stroke, low resonance frequency

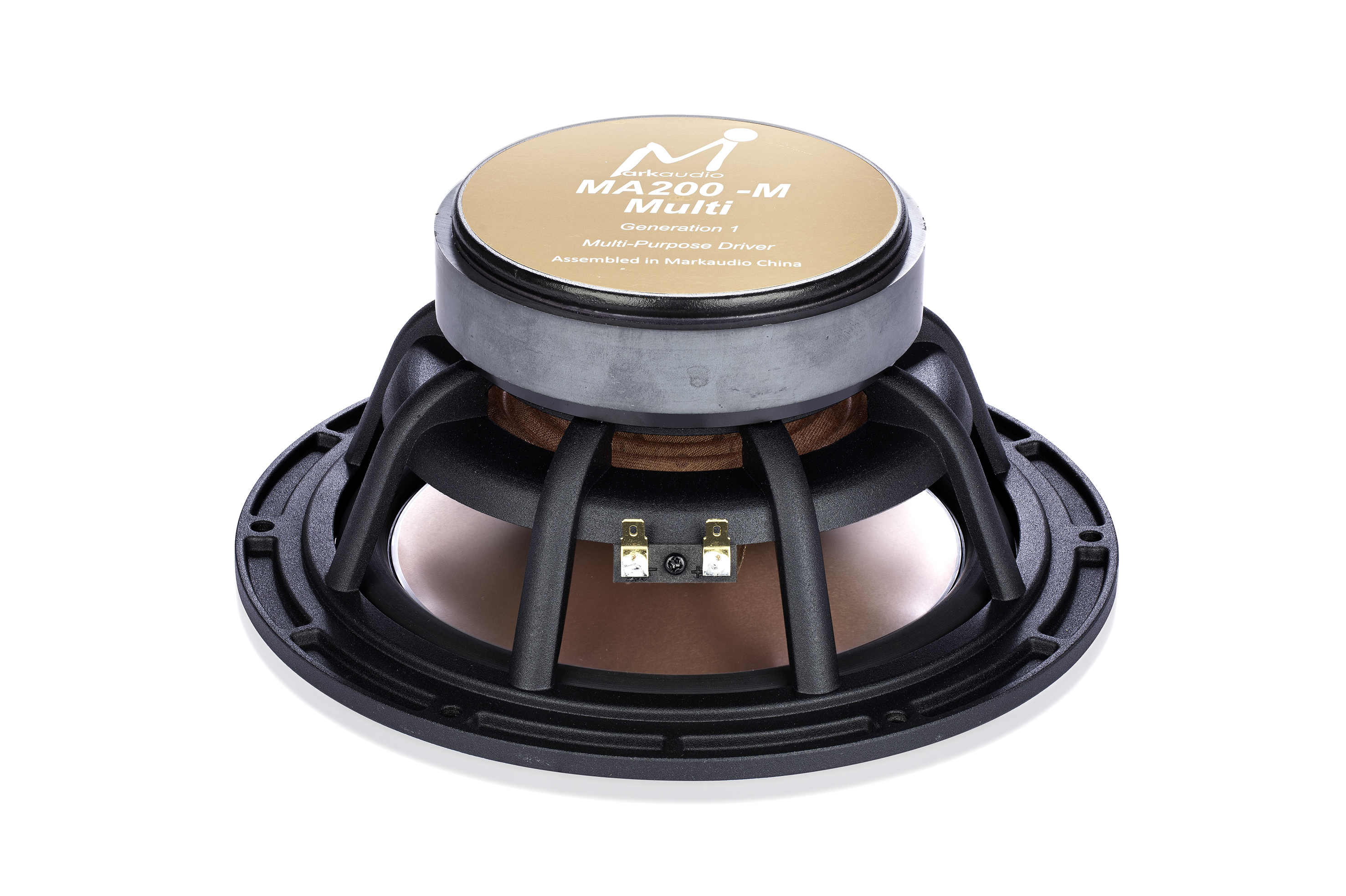

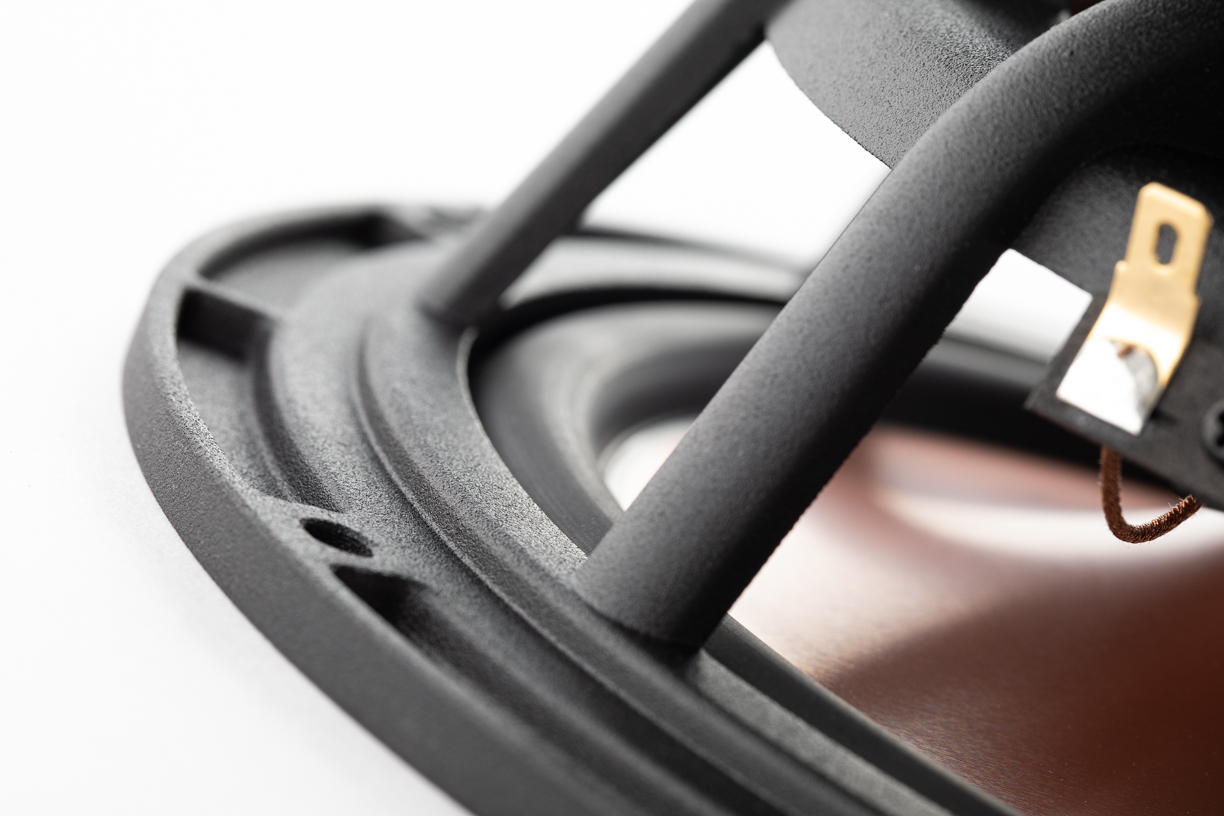

  • Aluminum chassis optimizes sound wave emittance and airflow

Description

The MA200-M Multi is a new design 8-inch high-fidelity driver for multi-use applications and high-volume speaker projects.

The driver retains Markaudio’s unique design concept, style, and functionality, producing real bass combined with full-range frequency output. The MA200-M Multi is a testament to Markaudio’s commitment to versatility.

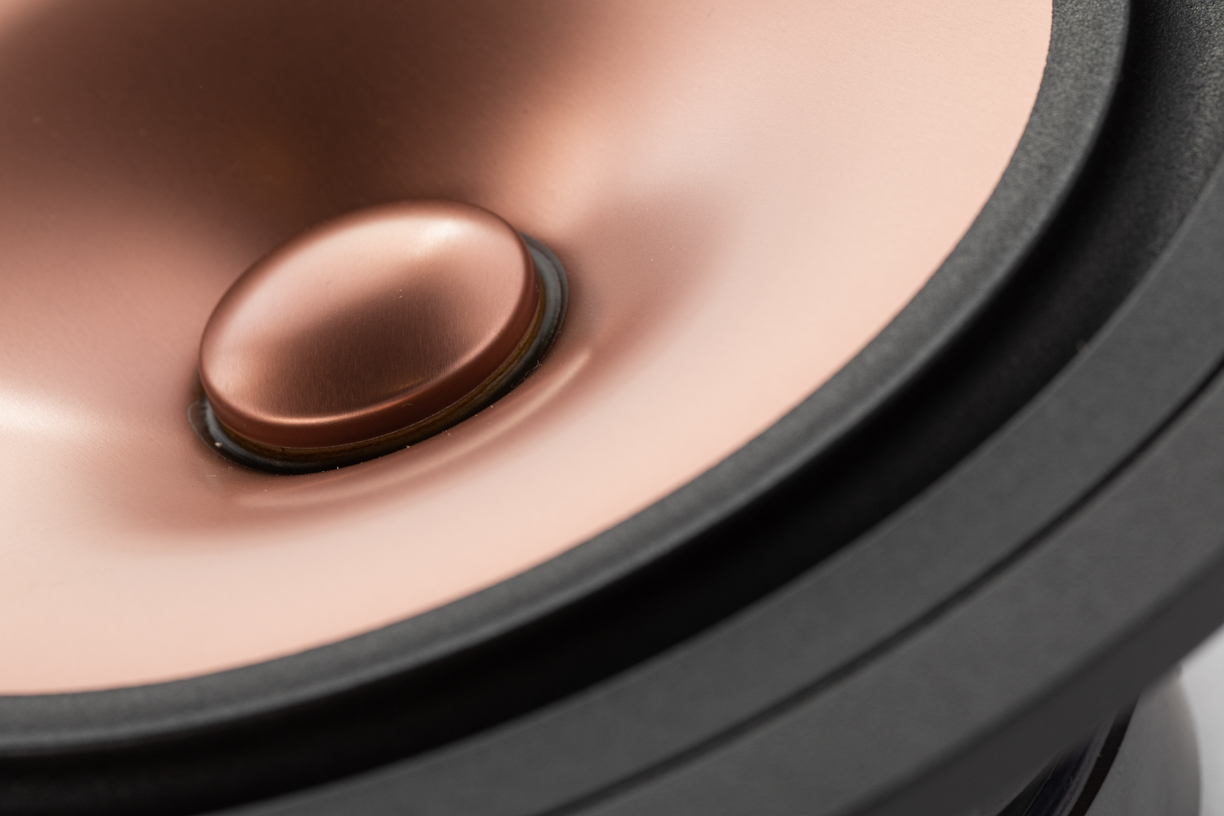

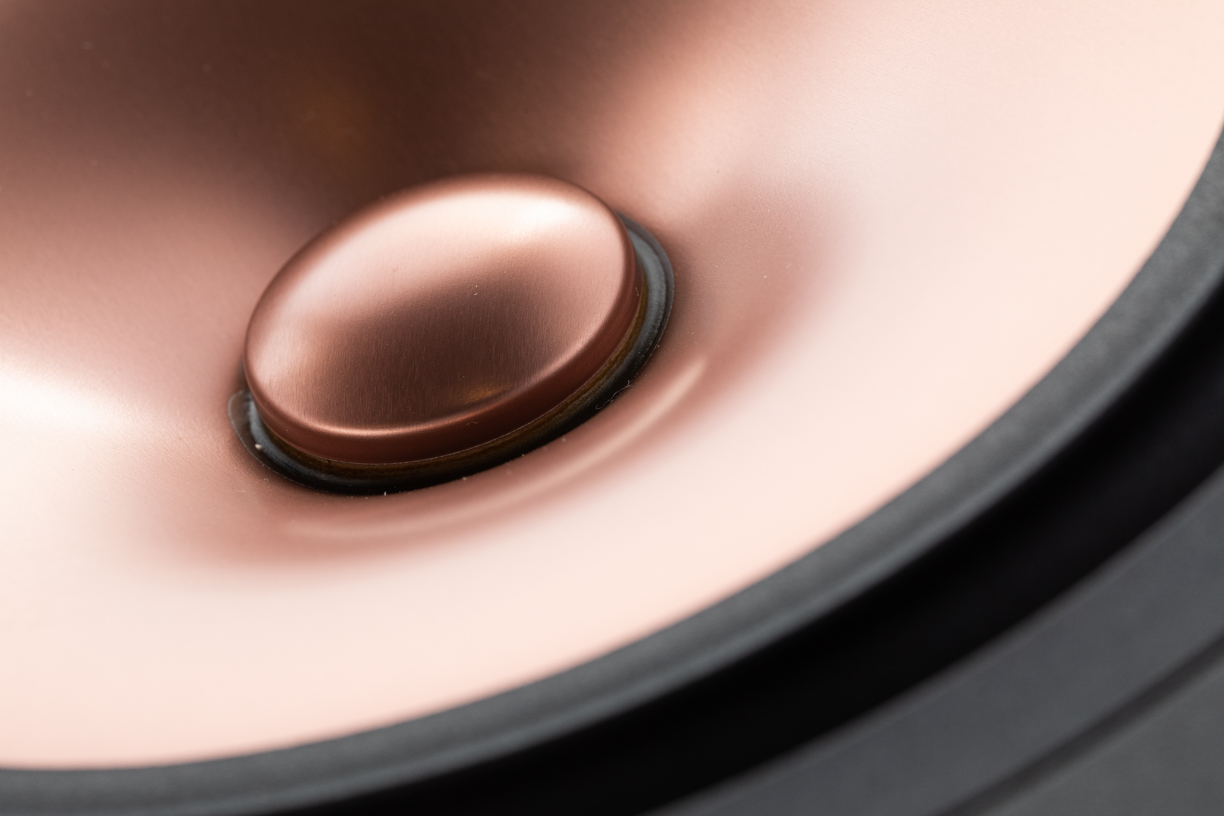

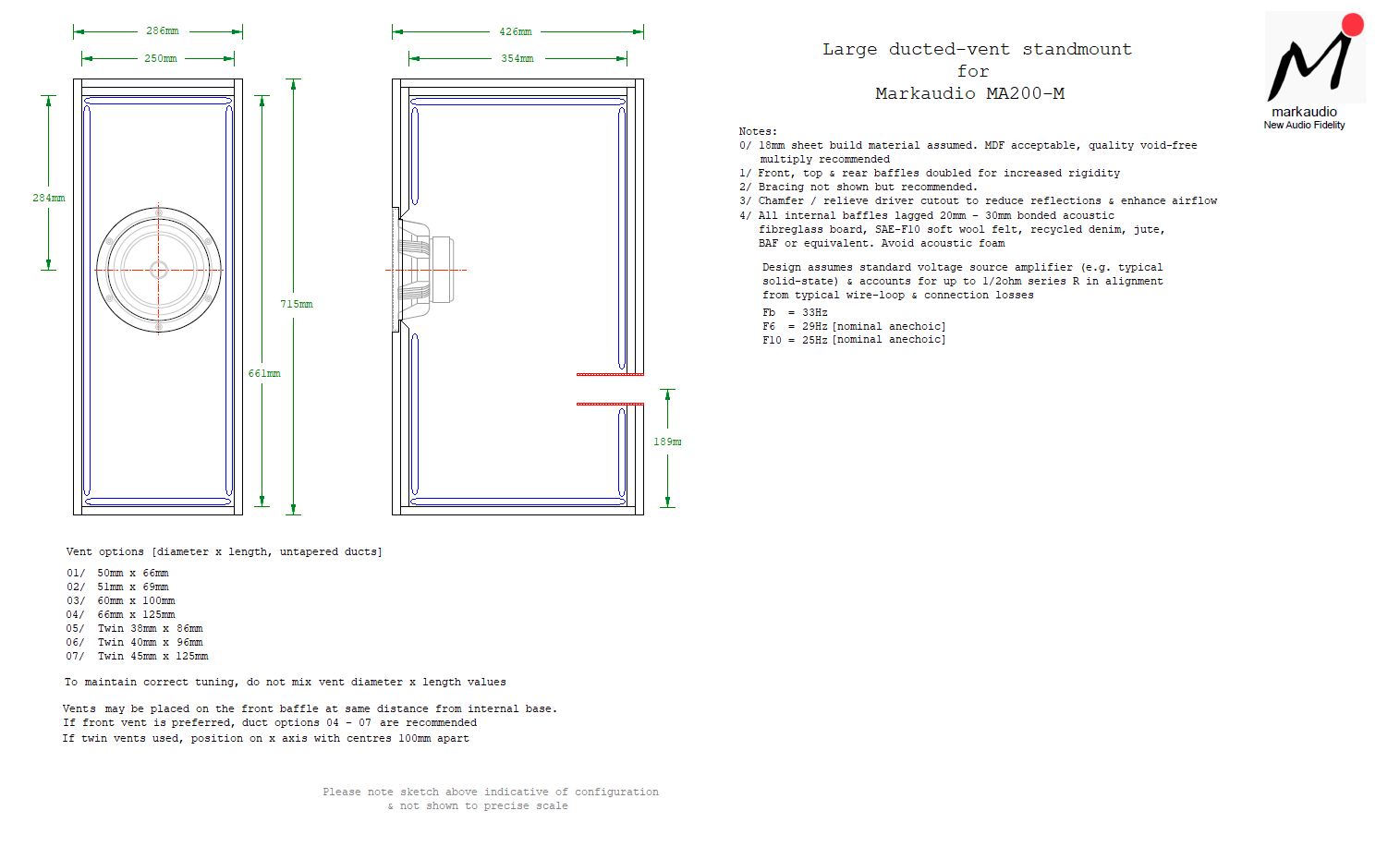

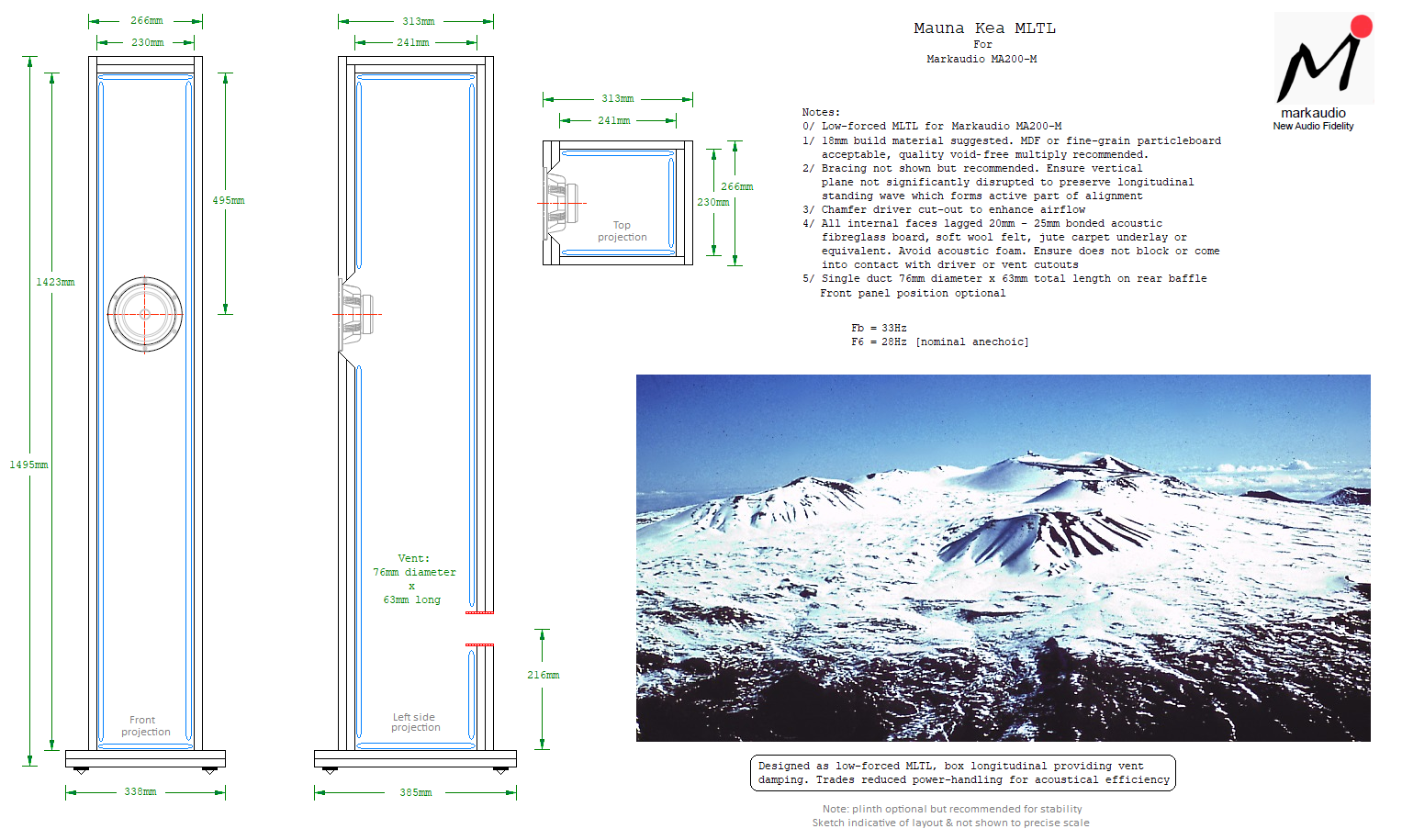

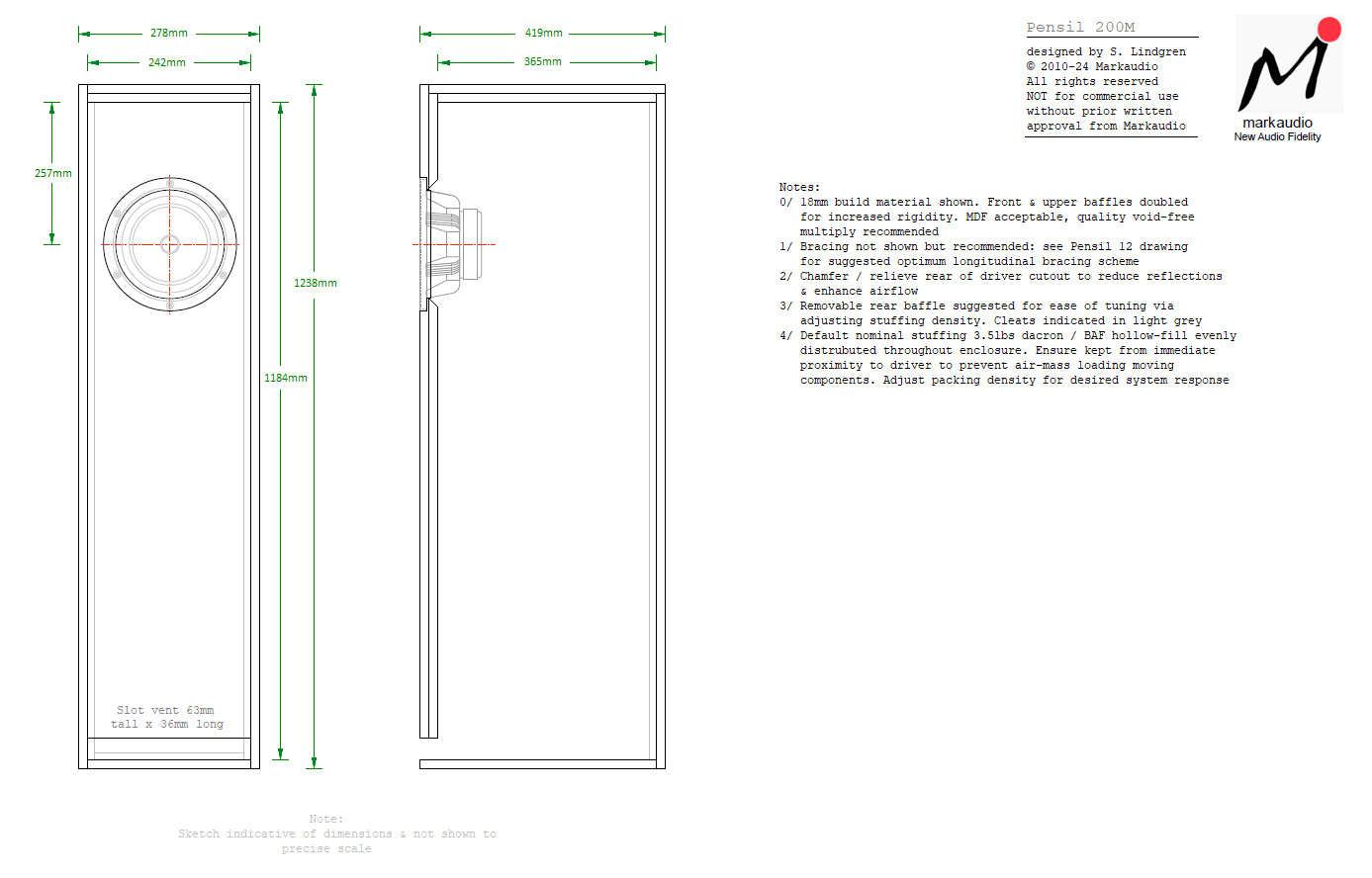

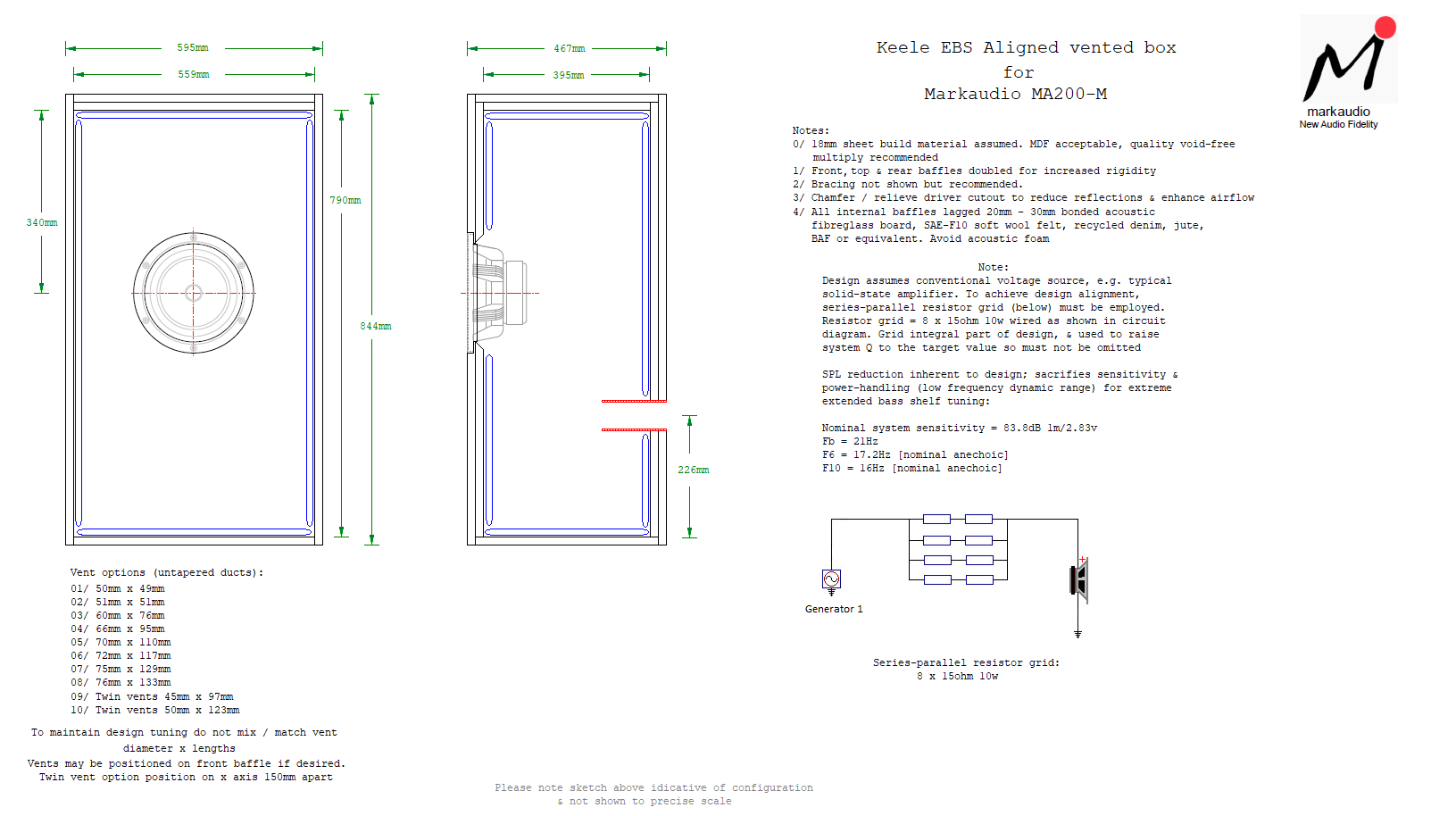

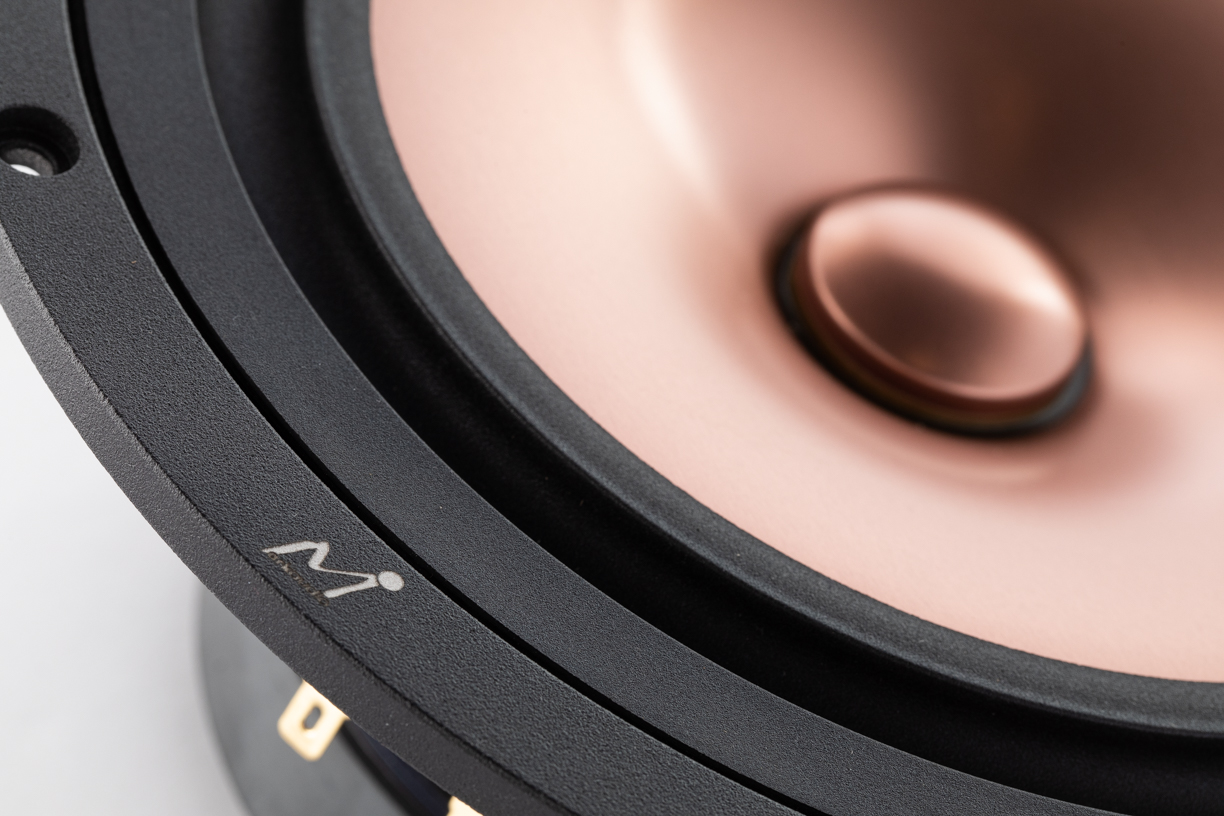

The cone is made from a high-strength, aerospace-grade aluminum magnesium mixed alloy, designed to cope with high bending stress loads. The material thickness is carefully balanced to maximize low-frequency load capacity while retaining excellent performance at higher frequencies; Combined with the long-stroke suspension and low-distortion motor, provides a low resonant frequency, medium Q, and an air volume compliance to around 65 liters. The driver is optimized for larger enclosures delivering a smooth extended range from 30Hz to above 20KHz in suitable box designs. The chassis is designed with rounded angles to improve sound wave emittance and optimized airflow.

The MA200-M Multi driver represents high performance with affordability. It provides custom builders with broad operational flexibility in traditional full-range or wide-range mid-bass, the MA200-M Multi is ideal for use in high-fidelity, home-theatre, and commercial A/V applications. It’s ideal for a wide choice of enclosure types.

Markaudio provides users with high-quality listening experiences by continuing to develop advanced mechanically engineered audio drivers at affordable prices.

Stealth Grey variant is available soon.

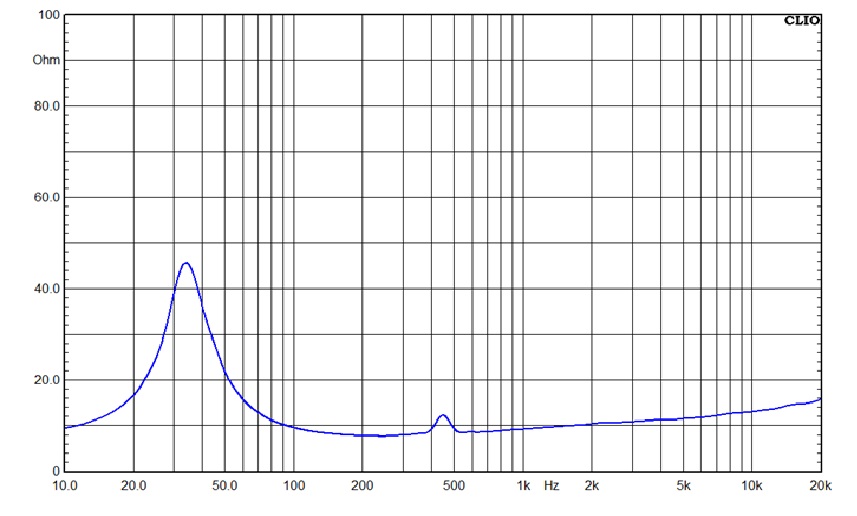

RE 6.8 Ohms
FS 33.0003 Hx
SD 0.0206 m2
VAS 65.1957 L
CMS 1.0990 mm/N
MMD 19.4093 g
MMS 21.1652 g
BL 8.5460 T/M
QMS 2.239
QES 0.4086
QTS 0.3455
RMS 1.96 WM

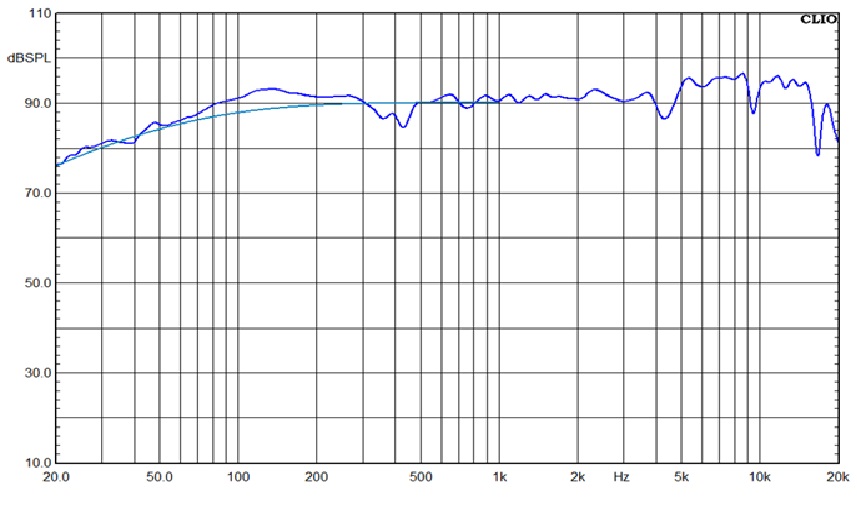

SPL 90.26 dB
POWER (NOMINAL) 50 Watts
X MAX 9 mm (one way)
COLOUR Midnight Copper




Additional information

Weight 2.6 kg
Dimensions 45 × 45 × 25 cm
RE

5.4 Ohms

FS

38.4

SD

147.41

VAS

45.3

CMS

1.468m M/N

MMD

10.658 g

MMS

11.687 g

BL

5.308 T/M

QMS

1.44

QES

0.541

QTS

0.393

LE

49.3 uH

SPL

88.6 dB

POWER (NOMINAL)

40 Watts

X MAX

8.5 mm (one way)

colour

Paper
